DIMLUX EXPERT SERIE
1000/1250W MKII DE EL UHF DXO California Spec
The First Choice for Professional Horticulturalists Made for boost!
The only lamp in the world to meet theHorticultural Lighting Minimum Efficacy 2022 (2023) California Energy Code
The new 1000/1250W MKII DE EL UHF DXO California Spec is ready* for the 2022 (2023) California Energy Code that requires a minimum photosynthetic photon efficacy (PPE) of 2.1µMol/J for fixtures in indoor growing facilities with more then 1,000ft2 of canopy.
*To meet the new requirement the new DXO (Dimlux Xtreme Output) CaliSpec bulb needs to be installed.
The First Choice for
Made for boost!

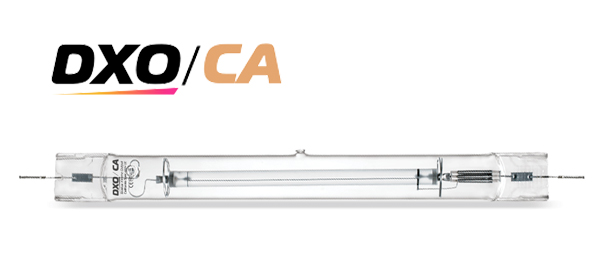

The new developed DXO California Spec HPS 400V 1000/1250W DE EL bulb is the best performing 400V EL bulb available. It’s the only bulb specifically designed for dimming AND boosting which results in the highest performance at boost without the PAR deprivation. It’s targeted for professional horticulturalists in the commercial food growing industry, which is largely down to its ability to pile on weight during the bloom phase. The extremely high PAR output and high PAR maintenance provide the best in class grow light and set a new benchmark for 1000W 400V EL bulbs.
95% PAR maintenance
after 10.000h operation!
The new developed Dimlux Xtreme Output California Spec HPS 400V 1000/1250W DE EL
HOE WERKT HET?

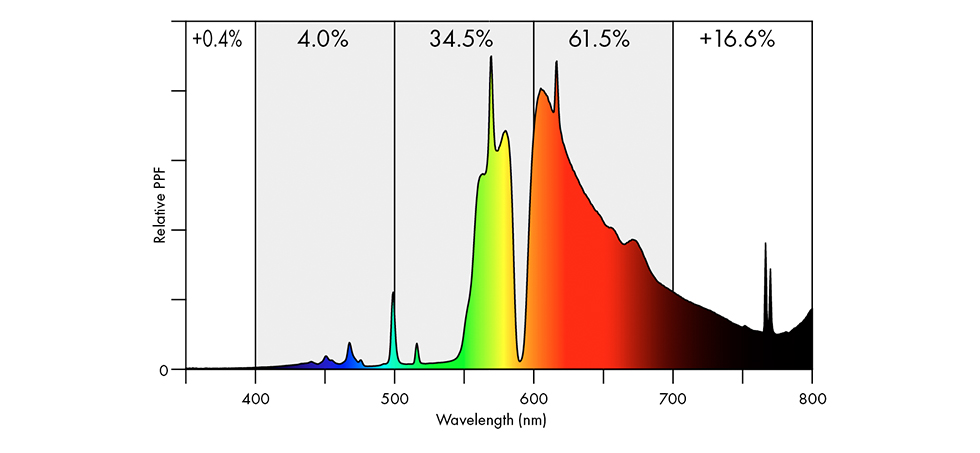

The DXO California Spec HPS 400V 1000/1250W DE EL bulb is a single-spectrum bulb with the most plant-useable light output of just about any 1000 Watt lamp on the market. The bulb produces light mostly in the orange/red part of the spectrum for heavy flowering however, it does produce some light in the blue part of the spectrum making it suitable for vegging. It has been specifically designed to make the most of your HPS (400 Volt / 1000 Watt) electronic system with boost where it will produce more plant-useable light photons, of a better spectrum, than any other 1000 Watt bulb available.
specs Dimlux Xtreme Output California Spec HPS 400V 1000/1250W DE EL
Light Output PAR (PPF 400-700nm): 2780µmol/s @1250W
Light Output PAR Total (PPF 350-800nm): 3070µmol/s @1250W
Photon Efficacy PAR (PPE 400-700nm): 2.23µmol/J @1150-1250W
Photon Efficacy PAR Total (PPE 350-800nm): 2.46µmol/J @1150-1250W
- System Light Output PAR (PPF 400-700nm)
- System Light Output PAR Total (PPF 350-800nm)
- System Photon Efficacy PAR (PPE 400-700nm)
- System Photon Efficacy PAR Total (PPE 350-800nm)
- Fitted with DXO California Spec 1250W 2780μmol/s 2.23μmol/J 400V DE Bulb
- Voltage 230V ±10V
- Input Power @100% 1035W
- Input Current @100% 4.5A
- Input Power @boost 1250W 1290W
- Input Current @boost 1250W 5.6A
- Input Frequency 50/60Hz
- Power Factor 0.99
- Ultra high frequency (UHF) Yes
- Controller Maxi Controller
- Dimensions 625x275x130mm (26.5”x10.8”x5.1”)
- Weight Weight 6.3kg (13.88lbs)
Dimlux Expert Series EN Installation and User Guide
Bedien het Dimlux armatuur met een Maxi Controller
Minimaliseert verliezen aan wandreflectie.
