DIMLUX PRO
PROFESSIONAL HORTICULTURE LIGHTING SOLUTION
System PPF@1150W:
2339 μmol/s
Removable Ultra optics reflector
4 digit display with boost function
PROFESSIONAL HORTICULTURE LIGHTING SOLUTIONS
Dimlux develops and manufactures tailored lighting solutions urban farming and small scale production and large scale horticulture. With decades of experience our engineers have combined the newest techniques and innovations to create the most advanced complete lighting system on the market on the market today.
PROFESSIONAL HORTICULTURE LIGHTING SOLUTIONS
Dimlux develops and manufactures tailored lighting solutions urban farming and small scale production and large scale horticulture. With decades of experience our engineers have combined the newest techniques and innovations to create the most advanced complete lighting system on the market on the market today.
DIMLUX PRO 1000W
277-347V SMART EXCEEDCONN
- 277V
- EU + CAN Market
- Efficient light distribution
- System PPF@1000W: 2016μmol/s
- System PPF@1150W: 2339μmol/s
DIMLUX PRO 1000W
208-240V SMART IEC
- 230V
- EU + UK + US Market
- Efficient light distribution
- System PPF@1000W: 2016μmol/s
- System PPF@1150W: 2339μmol/
DIMLUX PRO 1000W
347-400V SMART EXCEEDCONN
- 400V
- EU + UK + US Market
- Efficient light distribution
- System PPF@1000W: 2016μmol/s
- System PPF@1150W: 2339μmol/s
DIMLUX PRO 1000W
277-347V SMART EXCEEDCONN
- 277V
- EU + UK + US Market
- Efficient light distribution
- System PPF@1000W: 2016μmol/s
- System PPF@1150W: 2339μmol/s
EASY REMOVABLE
ULTRA OPTICS REFLECTOR
Want hoe gemakkelijker het wordt, hoe beter en sneller, vooral wanneer de reflector op grote hoogte wordt vervangen voor vervanging of reiniging. Bij het kweken in de zomer willen veel glastuinders de reflector verwijderen om te voorkomen dat de reflector verslechtert en om de hoeveelheid schaduw op hun planten te verminderen.
AN ULTIMATE RANGE OF REFLECTORS TO MEET EVERYONE’S NEEDS
The main goal in designing the Ultra Optics Reflector was to achieve the highest efficiency (light output) possible. It’s designed according to the SBCS (Single Bounce Clear Sight) principle which
Ultra Optics Hybrid 96
The Hybrid reflector ensures a deep penetration into the plants, while having a larger overlap with other fixtures for better uniformity. The area it illuminates has an aspect ratio of 1.3:1. This reflector is the ideal choice for many scenarios because it combines the best qualities of the Deep and Wide reflectors.
Ultra Optics Wide 98
The Wide reflector illuminates a much wider area, which allows for a very short distance between the plants and the reflector. Because of the wider spread, the distance between the crop and reflector for the 1000W fixture is about the same as a regular 600W system. The area it illuminates has an aspect ratio of 2:1, a rectangle.
Ultra Optics Deep 98
The Deep reflector allows the light to penetrate very deep into the canopy. Because the Deep reflector directs more light downwards and less to the sides, losses due to walls and walking paths are minimized. The area it illuminates has an aspect ratio of 1:1, square.
4-CIJFERIGE DISPLAY MET DIM-SCHAKELAAR EN BOOST
Status en alarmen worden op dit scherm weergegeven. De Dimlux Pro-serie is op afstand te bedienen en te bedienen met de dimschakelaar en met een 1000W-lamp en in boost kan deze oplopen tot 1150W.
CLOSED &
VERTICAL BALLAST
The Dimlux Pro Series has a closed ballast instead of an open ballast. This to prevent moisture getting into the ballast. The ballast is mounted vertically to decrease the amount of light which is intercepted by the fixture. The Dimlux Pro Series has the least light interception during a full day light cycle.
SLIMME BALLAST
De ballast kan softwarematig worden geüpgraded en is klaar voor het nieuwe digitale controllerplatform
GEO MEMBRAAN
Dit om de druk binnen en buiten de ballast gelijk te maken, dit is om vocht te voorkomen bij het afkoelen in de ballast terechtkomen.
SPECIFICATIONS PRO SERIES
Pro Series 1000W | 347-400V | 208-240V | 208-277V | 277-347V | 347-400V |
Exceedconn | Smart IEC | Smart Exceedconn | Smart Exceedconn | Smart Exceedconn | |
Article No. | 2-733 | 2-734 | 2-735 | 2-736 | 2-737 |
Voltage: | 400V | 230V | 277V | 277V | 400V |
Input power @100%: | 1032W | 1035W | 1032W | 1032W | 1032W |
Input current @100%: | 2.58A | 4.5A | 4.5A | 3.7A | 2.58A |
Input power @boost | 1187W | 1242W | 1242W | 1187W | 1187W |
Input current @boost: | 2.97A | 5.4A | 5.4A | 4.25A | 2.97A |
Input frequency: | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz |
Power factor: | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
System PPF@1000W: | 2016μmol/s | 2016μmol/s | 2016μmol/s | 2016μmol/s | 2016μmol/s |
System PPE@1000W: | 1.95µmol/J | 1.95µmol/J | 1.95µmol/J | 1.95µmol/J | 1.95µmol/J |
System PPF@1150W: | 2339μmol/s | 2339μmol/s | 2339μmol/s | 2339μmol/s | 2339μmol/s |
System PPE@1150W: | 1.97µmol/J | 1.96µmol/J | 1.97µmol/J | 1.97µmol/J | 1.97µmol/J |
Ultra High Frequency (UHF): | Yes | Yes | Yes | Yes | Yes |
Controller: | By WiFi – Maxi controller | By WiFi – Maxi controller | By WiFi – Maxi controller | By WiFi – Maxi controller | By WiFi – Maxi controller |

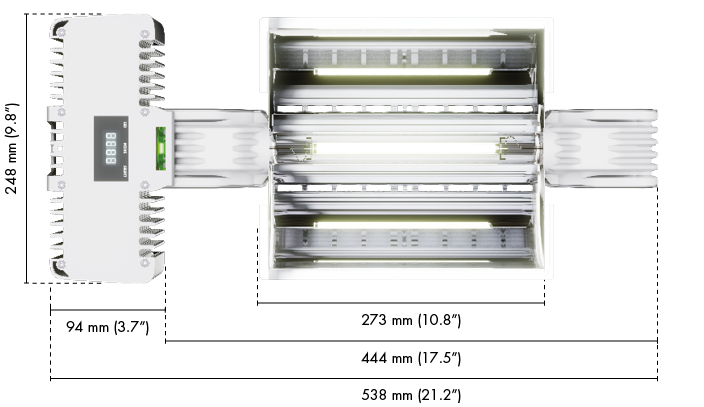

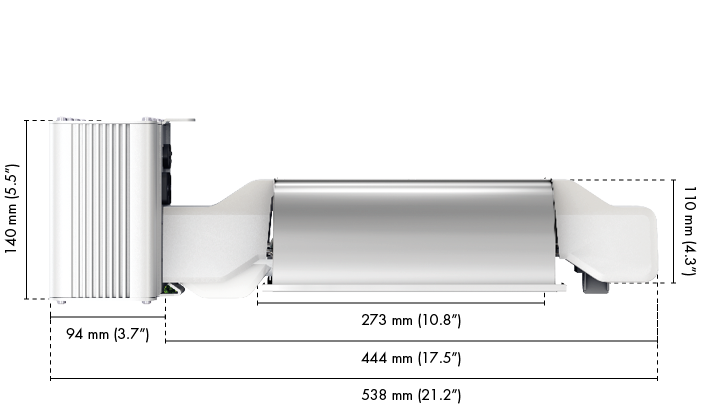

Measurements: | 538×248×115mm | 538×248×115mm | 538×248×115mm | 538×248×115mm | 538×248×115mm |
21.18x9.76x4.52inch | 21.18x9.76x4.52inch | 21.18x9.76x4.52inch | 21.18x9.76x4.52inch | 21.18x9.76x4.52inch | |
Weight: | 4.1kg | 4.1kg | 4.1kg | 4.1kg | 4.1kg |
Power cord: | 2mt, 5mt, 10mt EP030 open leads | 4mt IEC EU Plug | 2mt, 5mt, 10mt EP030 open leads | 2mt, 5mt, 10mt EP030 open leads | 2mt, 5mt, 10mt EP030 open leads |
4mt IEC UK Plug | 4mt EPO30 240V USA Plug | 4mt EP030 L7-15 USA plug | |||
5mt IEC 240V USA Plug | 4mt EP030 L7-15 USA plug |
