The most versatile system a unique modular concept

the highest “FULL WIDTH” fixture-to-grow-bed UNIFORMITY and efficiency in the market
THE DIMLUX VERTILED SERIES.

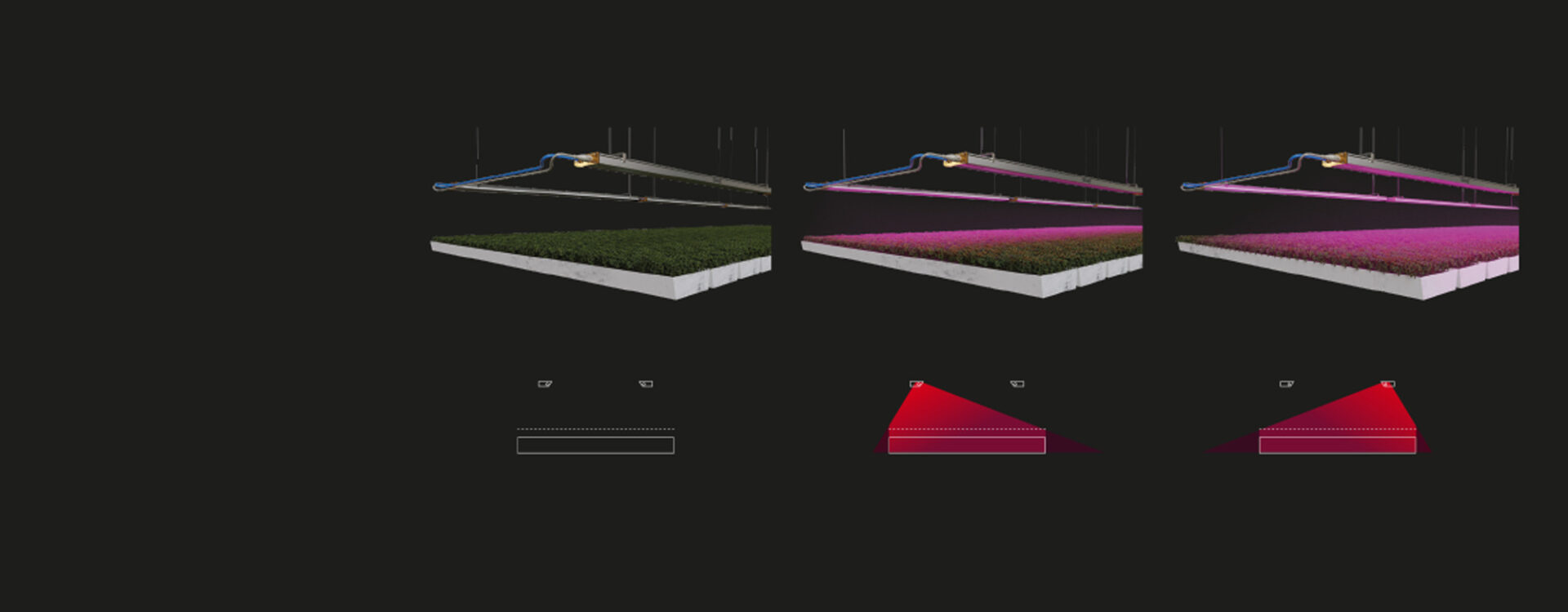

The unique angled position and asymmetric high-precision optics distributes the light uniformly over the full width of the grow bed

The Dimlux vertiLED™ makes it possible to illuminate crops where there is little space available between fixture and crop. The vertiLED™ has an extremely high light uniformity due to the ‘tailored lens optics’. This ensures that a single multi-layer fixture can evenly illuminate a very large area.

PASSIVE AIR COOLED AND WATER COOLED

Can be used in any situation due to the hybrid cooling. water cooling is the most efficient and ensures direct heat dissipation

A high “FULL WIDTH” fixture-to-grow-bed UNIFORMITY and efficiency

The unique angled position and asymmetric high-precision optics distributes the light uniformly over the full width of the grow bed. With conventional vertical growing lighting systems, light decreases towards the sides of the grow bed, and they don’t prevent light falling outside of the grow bed. This is inherent to symmetrical light designs.

The vertiLED overcomes this limitation by using an asymmetrical design of the secondary optics. The optics amplify the light that falls on the grow bed and attenuates the light that falls outside of the grow bed. Because of this, vertiLED offers the highest fixture-to-grow-bed light efficiency in the market.

Features

highest “full width” uniformity
Independent dynamical control of 4 separate LED color channels.
Connect Up to 10 fixtures using combined power and communication cables .
Water cooled and passive air cooled
Stable temperature, humidity and homogeneous growing climate using active water cooling.
Each fixture has a unique address and can be independently controlled and asked for system status and fixture / cooling water temperature.
Fits any system Multi option mounting system for top and side mounting. For any mounting option, mounting brackets can be custom-made.

View Specs

Features

highest “full width” uniformity
Independent dynamical control of 4 separate LED color channels.
Connect Up to 10 fixtures using combined power and communication cables .
Water cooled and passive air cooled
Stable temperature, humidity and homogeneous growing climate using active water cooling.
Each fixture has a unique address and can be independently controlled and asked for system status and fixture / cooling water temperature.
Fits any system
Multi option mounting system for top and side mounting. For any mounting option, mounting brackets can be custom-made.

View Specs

The patented “broken” lens design ensures the highest possible efficiency in the market

Dimlux are experts in designing the best possible optics with the highest efficiency and uniformity for its fixtures to meet the most demanding lighting requirements in the most complicated grow areas. The patented “broken” lens design ensures the highest possible efficiency in the market. The innovative and unique modular technology ensures highly efficient tailored LED lighting in vertical grow farms and a stable cultivation climate.

The new vertiLED vertical grow farm fixture is specifically designed to distribute light uniformly, even with extremely little distance between fixture and crop. The vertiLED can be used for close-to-crop applications such as vertical grow systems and growrack systems in a grow farm.

The patented “broken” lens design ensures the highest possible efficiency

Dimlux are experts in designing the best possible optics with the highest efficiency and uniformity for its fixtures to meet the most demanding lighting requirements in the most complicated grow areas. The patented “broken” lens design ensures the highest possible efficiency in the market. The innovative and unique modular technology ensures highly efficient tailored LED lighting in vertical grow farms and a stable cultivation climate.

The vertiLED overcomes this limitation by using an asymmetrical design of the secondary optics. The optics amplify the light that falls on the grow bed and attenuates the light that falls outside of the grow bed. Because of this, vertiLED offers the highest fixture-to-grow-bed light efficiency in the market.

PASSIVE AIR-COOLED AND WATER-COOLED

The air cooling is passive so there are no fans or spaces that can become clogged with dust. The water cooling is the most efficient form of cooling and ensures direct heat dissipation. With water cooling, the fixture will no longer give off convection heat and will therefore not heat above or nearby levels.

Stable climate

When active water cooling is used, the heat from the vertiLED fixtures is taken out of the growing area, so that there is no need for forced air flow, which improves growth and reduces cooling costs. This contributes to a stable temperature and humidity, a stable, homogeneous growing climate.

WATER COOLED DRIVERS

The drivers for each of the channels are built into the fixtures, so their heat is also dissipated into the water. No external drivers, less fixtures, less installation time, less points of failure, less wiring and more space.

Water proof

The vertiLED fixture has an IP66 rating. All electronics and LEDs are in a dry safe environment.

One size fits all?

Unfortunately, there is no ideal fixture for all situations. The initial and final distance of the fixture to the crop, the width of the grow bed, the desired PPFD and the spectrum all influence the optimal design. The vertiLED can be made in such a way that it most closely matches the ideal fixture.

Robust and flexible lenght design

The vertiLED fixture is very robust and especially designed for horticultural use. Aluminium die-cast components, thick-wall anodized extrusions and powder-coated corrosion protection ensures the housing will last as long as the LEDs. The vertiLED fixtures are very solid and can be used as supports for plant gutters. The unique customizable length design assures a perfect fit for every structure.

Ultra High Transmission Lens
made of PMMA

The vertiLED fixture is composed of special PMMA with extremely high transmittance and does not block UV-A rays. The patented lens design prevents light from reflecting back to the LED and prevents absorption and reflection losses. The special PMMA will not age or yellow during its service life. PMMA is virtually unbreakable and therefore the safest choice to protect the LEDs.

INDEPENDENT DYNAMIC CONTROL OF 4
SEPARATE LED COLOR CHANNELS FOR REDUCING ENERGY COSTS

The variable spectrum and dynamic color control can be used to work with different crops with different optimal spectrum requirements in the same grow cell or growrack.

Spectrum composer

Due to the inhouse development of the Spectrum Composer, a software tool in which we can simulate every LED spectrum from every high class LED producer. Thanks to this powerfull tool we can simulate and very quickly determine which options are availble and which LED combination has the best results.

LONG LIFE EXPECTANCY

The vertiLED retains 90% of its light output in at least 95% of the luminaires after 50,000 hours: L90 B05 50,000 hours for the standard specification (SE). For the Xtreme specifiaction (XE) the the light output is still guaranteed after 54,000 hours.

other vertical led fixture lay-out

LEDs are placed 20 centimeters a part over a total length of 15 meter resulting in a vertical farming grow bed with approximately 75 LED grow lights
